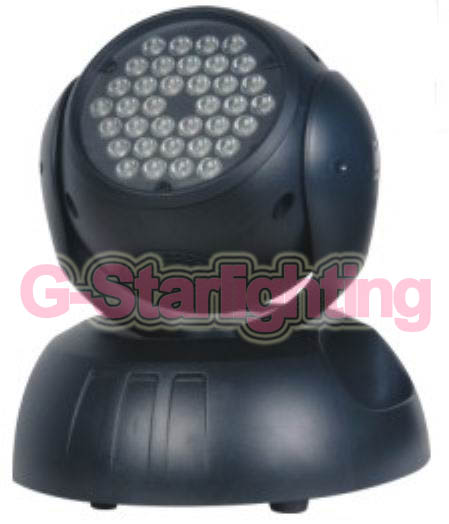

double-arm LED moving head light

Name:double-arm led moving head light

Model： GS-M36

Technical parameters (1W /3W LED)

Voltage / frequency: 90V-240V       50/60Hz

Power: 68W/150W

Light source: 1W/3W*36LED(12R 12G 12B)

Control signal: DMX 512

Channel: 11 CH

Package Size: L360 × W360 × H455 mm

NW: 7.3 KG GW: 9.1 KG

Technical parameters (3 W LED)

Voltage / frequency:90V-240V       50/60Hz

Light source: 3W*36LED(12R 12G 12B)

Power: 140W

Control signal: DMX 512

Channel: 11 CH/15CH

Package Size: L360 × W360 × H455 mm

NW: 7.3 KG GW: 9.1KG

Features:

⊙ GS-M36 using 36, per 1 W (3W), high-power LED

⊙ per LED, the average life span of 100,000 hours

⊙ low power consumption

⊙ super brightness, comparable to the general discharge bubble, rich bright colours of No

Limit

⊙ DMX512 control signals, 11-channel standard

⊙ chassis of the PC using streamlined fashion engineering plastics shell, a molding

⊙ super-smooth large-scale scanning, horizontal scan 540 degrees, 265 degrees vertical

scanning,

8 bit and 16 bit scanning accuracy, can smooth precision positioning and scanning speed adjustment

⊙ unlimited RGB color mixing system

⊙ beam angle of 15 degrees -25 degrees optional

⊙ of high-speed electronic regulation stroboscopic up to 1-18 times / second

⊙ the dimming control channel can simultaneously control three main channel shading color change

⊙ fuselage control panel digital display fonts can be reversed 180 degrees for Lighting linked to the use of flat or swap

⊙ with automatic functionality, music control functions, built-in eight DMX control procedures can be activated

⊙ comply with CE standards, UL standards
